This article goes through the Cooler Master Hyper 622 Halo Black (model RR-D6BB-20PA-R1) using what the maker's official page (the English global page) states.

Overview

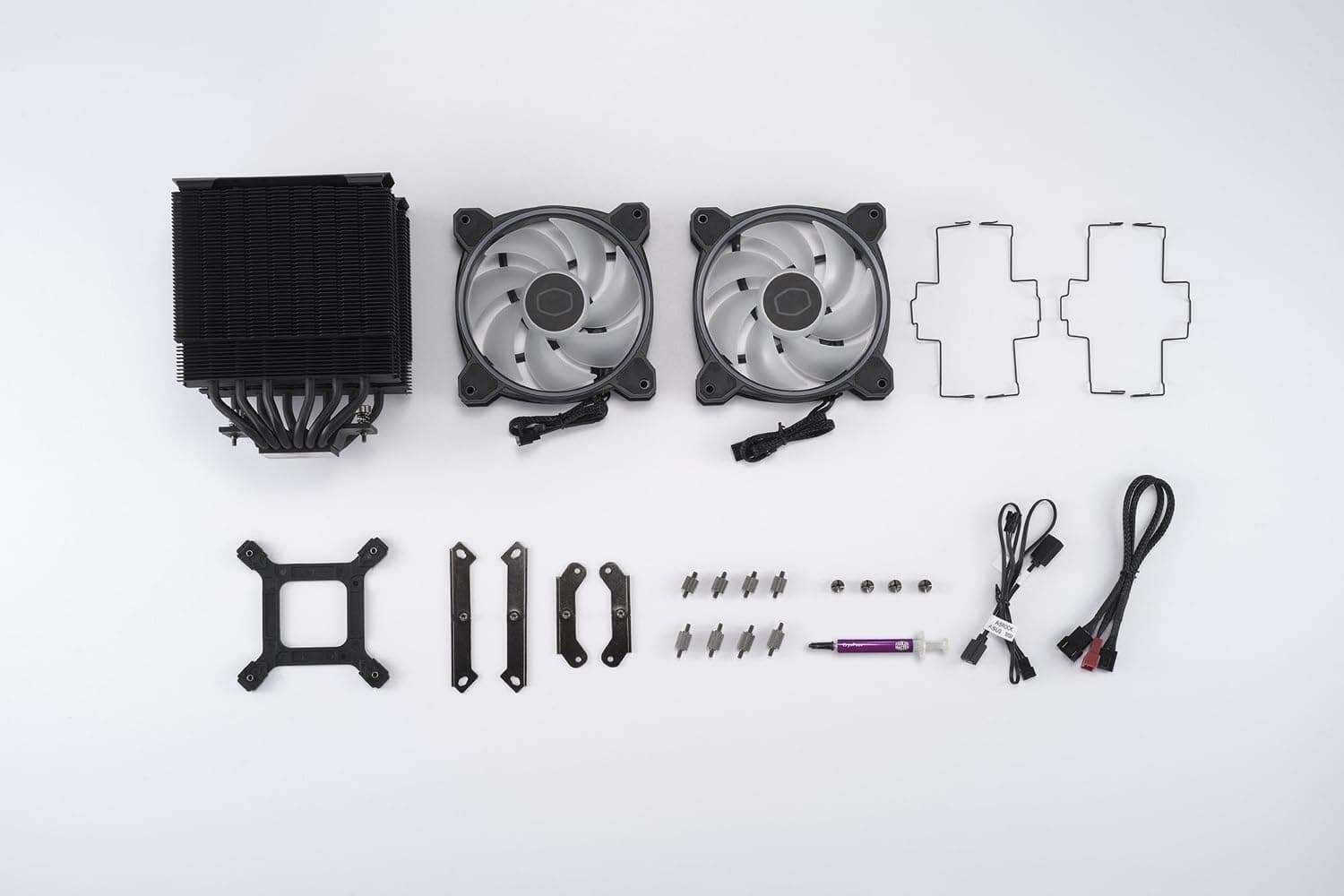

The official page lists the Product Number as "RR-D6BB-20PA-R1", the Exterior Color as "Black", the Cooler Type as "Air Cooler" and the Series as "Hyper".

Supported sockets, dimensions and the fan's power are in the Compatibility Guide. The heat sink and fan values, the lighting and the warranty are in Product Info.

Compatibility Guide

These are the checks to make before installing, taken from the official values.

  • CPU sockets: There are two CPU Socket rows. The Intel row reads "Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket" and the AMD row reads "AMD® AM5 / AM4 Socket". Compare them with the socket name of your CPU.
  • Fan connector: Fan Power Connector reads "4-Pin (PWM)". Check that your motherboard has a CPU fan header for a connector written this way.
  • Fan power: Fan Rated Voltage reads "12 VDC", Fan Rated Current reads "0.28A", Fan Safety Current reads "0.54A" and Fan Power Consumption reads "3.36W".

Product Info

These are the main official values, with how to read them when you check a listing.

  • Heat sink: Heat Sink Material reads "6 Heat Pipes / Aluminum Fins" and Heatpipes reads "6".
  • Fan quantity and speed: Fan Quantity reads "2 PCS" and Fan Speed reads 650-2050 RPM, with a tolerance of ± 10 per cent. When you compare a listing's speed with it, match whether a tolerance is given.
  • Airflow and pressure: Fan Airflow reads "51.88 CFM (Max)" and Fan Air Pressure reads "2.89 mmH₂O (Max)".
  • Noise: Fan Noise Level reads "27 dBA (Max)".
  • Lifetime and bearing: Fan MTTF reads ">160,000 Hours" and Fan Bearing Type reads "Rifle Bearing".
  • Lighting: Profile reads "Addressable Gen 2 RGB".
  • Warranty: Warranty reads "2 years".

Best Use Cases

  • Buyers who choose by socket name. The two CPU Socket rows (Intel and AMD) on the official page list the sockets it supports.
  • Buyers who match the case's supported dimensions. How to read the dimension entries is in the Compatibility Guide.
  • Buyers who want to compare fan values. Airflow, pressure and noise values are listed on the official page.

Things to Consider

Here is what to check before buying, following the official page.

First, the model number. The official Product Number is RR-D6BB-20PA-R1. Make sure the store listing shows the same model number.

Second, the socket name. The official page lists the sockets on two CPU Socket rows, one for Intel and one for AMD.

Look for your CPU's socket name on either line.

Third, how the dimension entries read. The official page has two dimension entries, and the entries alone do not separate what each one measures.

Finally, the fan speed. The official Fan Speed carries a tolerance. See the maker's official spec table for full details.

FAQ

Q. Does it support Intel LGA 1851? A.

The official CPU Socket row for Intel includes "LGA 1851". The full entry is quoted under "CPU sockets" in the Compatibility Guide.

Q. Does it support AM4?
A. The official CPU Socket row for AMD is quoted under "CPU sockets" in the Compatibility Guide.

Q. How many fans does it have?
A. The official Fan Quantity is written under "Fan quantity and speed" in Product Info.

Q. Which connector does the fan use?
A. The official Fan Power Connector is quoted under "Fan connector" in the Compatibility Guide.

Q. How many heat pipes does it have?
A. The official Heatpipes entry is written under "Heat sink" in Product Info.

Q. How long is the warranty?
A. The official Warranty entry is written under "Warranty" in Product Info.

Q. Where is the fan speed written? A.

The official Fan Speed entry is written under "Fan quantity and speed" in Product Info, together with its tolerance.

Q. What does the page say about lighting?
A. The official Profile entry is quoted under "Lighting" in Product Info.

Q. What colour is it?
A. The official Exterior Color entry is quoted in the Overview.

Q. Which of the two dimension entries is the cooler's size?
A. The wording of the official entries does not say which is which.
