This article takes a closer look at Cooler Master スタンダードCPUクーラー「Hyper」シリーズ コストパフォーマンスに優れたデュアルタワーモデル [ Hyper 620S ], using its published specifications and retail data.

Overview

The Cooler Master Hyper 620S is a dual-tower air cooler from the long-running Hyper line. The short verdict: this is not a cooler built to push a flagship CPU to its limits.

It is built to cool a mid-range CPU quietly, in a case that most tall dual-tower coolers will not fit. Six heat pipes are split across two aluminum fin stacks, yet overall height is held to 154.9 mm — that single decision defines the product.

The 120 mm fan spins from 650 to 1750 RPM ±10% under PWM control, moving up to 71.93 CFM at a maximum of 27.2 dBA.

It draws 3.12 W at 12 V.

The figure worth noting is that 27.2 dBA is the ceiling: even at full speed, the cooler stays at a level that case fans and a GPU will usually mask entirely.

On Amazon.co.jp the cooler holds 4.4 out of 5 stars across 141 reviews (roughly 88% positive, as captured in June 2026).

That is not a blockbuster review count, but the distribution is consistent and points to a product judged on "cools properly for the money" rather than on headline performance.

Connectivity & Compatibility

Supported sockets are Intel LGA1700 / LGA1200 / LGA1151 / LGA1150 / LGA1155 / LGA1156 and AMD AM5 / AM4. That covers current Intel 12th–14th generation parts and AM5 Ryzen, while still reaching back to the older LGA115x platforms — useful if you want to quiet down an aging machine rather than replace it.

Dimensions are 125 (W) × 137 (D) × 154.9 (H) mm.

The height is the key number. Mid-tower cases commonly specify a 155–170 mm cooler limit, and 165 mm-class dual towers simply will not let the side panel close in the tighter ones.

At under 155 mm, the 620S clears a "155 mm max" rating — but by 0.1 mm, so verify your case's stated limit before buying.

Memory clearance is generally comfortable for standard heat-spreader DIMMs at this footprint. As with any dual tower, the front fin stack sits over the memory area, so very tall RGB modules may force you to raise the front fan.

Raising the fan raises effective height too, which means 154.9 mm should be read as "height at the standard mounting position."

The fan uses a 4-pin PWM connector. Plug it into the board's CPU_FAN header and the BIOS fan curve applies directly; on an older 3-pin-only header it will run at full speed continuously.

Check Value What to watch
Height 154.9 mm Compare with your case's cooler limit
Width × depth 125 × 137 mm DIMM and VRM heatsink clearance
Sockets LGA1700/1200/115x, AM5/AM4 Newer sockets are not covered
Fan 120 mm, 650–1750 RPM Use a 4-pin PWM header
Noise 27.2 dBA max Quiet even at full speed

How It Compares

This price and size class is the most contested part of the air-cooling market. Within Cooler Master's own range, the Hyper 622 HALO sits above it with two fans and ARGB lighting, buying extra thermal headroom and looks.

The 620S is essentially that concept with the lighting and second fan removed to hit a lower price.

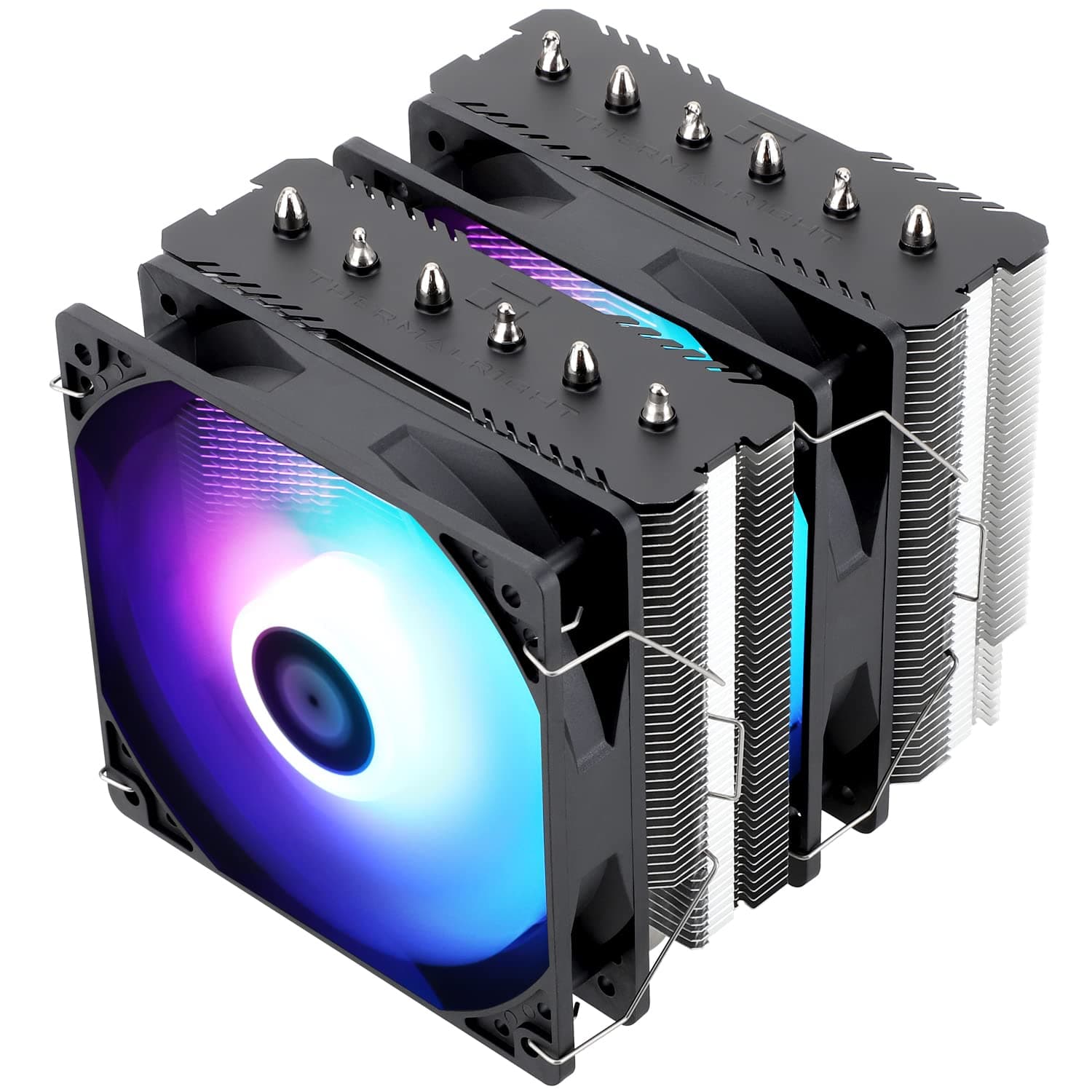

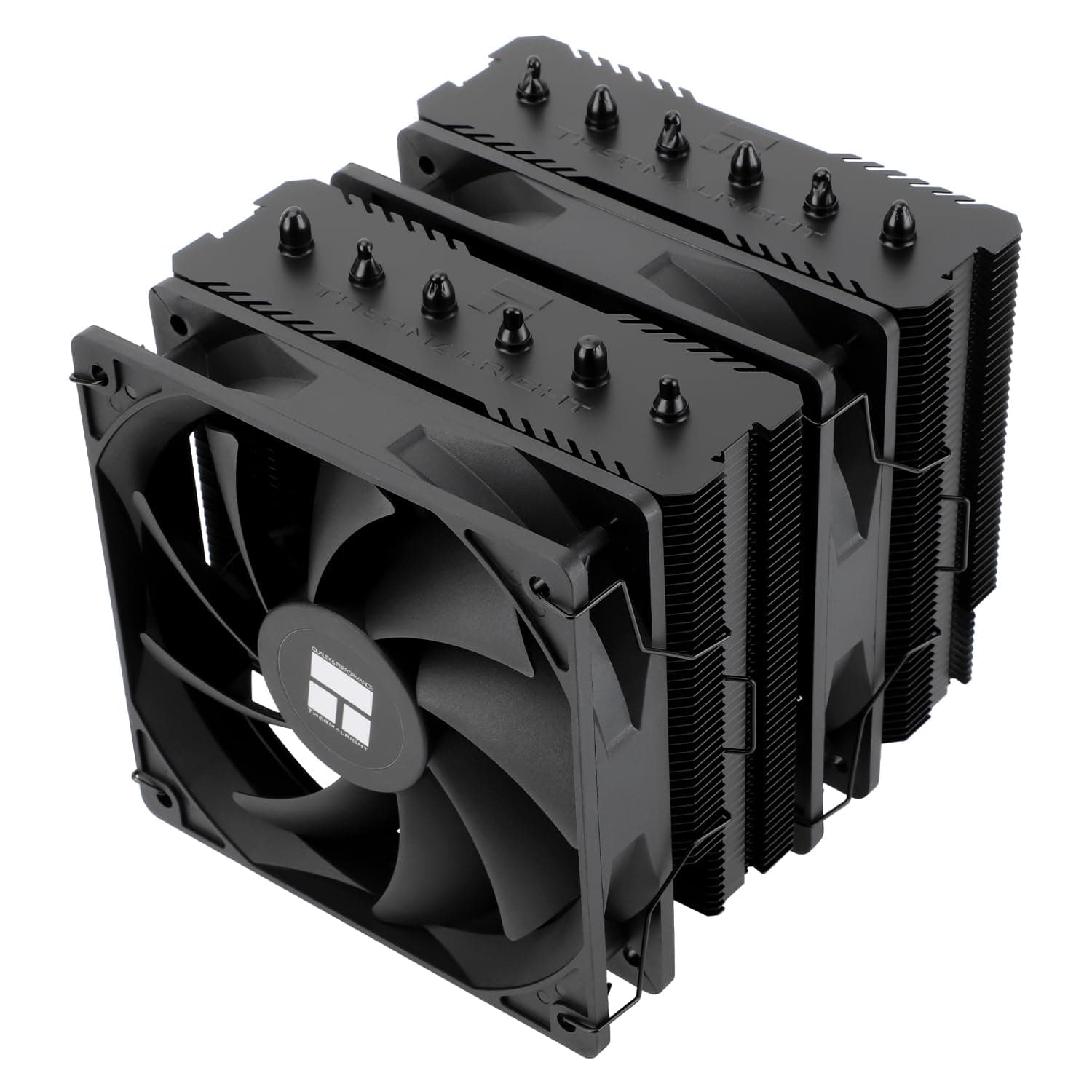

Against Thermalright's Peerless Assassin and Phantom Spirit families, which ship two fans for less money, the 620S loses on raw price-to-performance. What justifies it instead is the two-year manufacturer warranty, stable domestic distribution, and that sub-155 mm height.

If none of those matter to you, shop around.

Living With It

A dual-tower air cooler's real-world result depends more on case airflow than on the cooler itself. The 620S assumes a straight front-to-back path; in a case with no front intake, or with intake choked by a glass panel, it will underperform regardless of its specs.

With decent intake, it usually never needs 1750 RPM, which puts everyday operation well below that 27.2 dBA ceiling.

Set a fan curve that holds low RPM until roughly 60 °C and ramps gently after that. If short bursts of load make the fan surge audibly, lengthen the step-up and step-down times in the BIOS.

Product Info

Key specifications: six heat pipes, a 120 mm fan running 650–1750 RPM ±10%, up to 71.93 CFM, a 27.2 dBA maximum, 12 V and 3.12 W, dimensions of 125 × 137 × 154.9 mm, air cooling, and a two-year warranty.

The listed price was ￥12,871 on Amazon.co.jp as captured on 12 June 2026.

That is a point-in-time figure; cooler prices move by thousands of yen with sales and exchange rates, so check the product page for the current price. Overseas marketplace listings exist, but shipping and warranty handling usually make domestic purchase the better total cost at this level.

The review score stood at 4.4 out of 5 from 141 reviews at the same capture date.

The box includes Intel and AMD mounting kits, thermal paste, and an installation manual.

Product Disclosure (Amazon)

  • Brand: Cooler Master
  • ASIN: B0C5HD8Y1R

Best Use Cases

  • Value-focused builders who want air cooling — ample for a mid-range CPU at stock clocks.
  • Cases with a 155–160 mm cooler limit — 154.9 mm in a dual tower is rare and solves a real fitment problem.
  • Users who want quiet operation — 27.2 dBA is a low ceiling, and normal loads sit well under it.
  • Anyone avoiding AIO pump failure risk — one moving part, no coolant, no pump.
  • Owners of older LGA115x systems — the broad socket list makes it a genuine life-extender.

Things to Know Before Buying

This is not a cooler for flagship parts at full tilt. One 120 mm fan and six heat pipes do not leave headroom for sustained 200 W-plus loads.

For an overclocked Core i9 or Ryzen 9, step up to a twin-fan dual tower or a 240 mm-plus AIO. The 620S is optimized for quiet, stock-clock mid-range duty.

If price is your only criterion, alternatives exist. Competing dual towers ship two fans for less.

The 620S earns its price through warranty, availability, and height — if those do not matter to you, compare carefully.

Installation has pitfalls. Once a dual tower is mounted, reaching DIMM latches and top-edge connectors becomes awkward.

Fit memory, M.2 drives, and the EPS 12 V cable before mounting the cooler.

On LGA1700, uneven tightening measurably hurts thermals — tighten in a diagonal pattern, a little at a time.

Do not assume future socket support. The compatibility list stops at LGA1700 / 1200 / 115x and AM5 / AM4; newer Intel sockets would require a separate kit that should not be counted on.

Finally, retail listing metadata — model numbers, manufacturer fields, compatibility text — is sometimes wrong or mixed up with a sibling model such as the 622 HALO. Confirm from the product image and title that you are buying the Hyper 620S.

The same applies to pricing: a figure an order of magnitude off for this class of product usually means you are looking at a different listing.

FAQ

Q. My case allows 155 mm. Will it fit? A.

At 154.9 mm, yes on paper — with 0.1 mm to spare.

Raising the fan to clear memory would break that, so confirm you can mount it at the standard position.

Q. Will tall RGB memory interfere? A.

Standard-height DIMMs are usually fine at this footprint; very tall modules may require lifting the front fan. Measure your modules to be sure.

Q. Is it enough for a Ryzen 7 or Core i7? A.

At stock clocks, yes. For sustained all-core work like rendering or encoding, a twin-fan cooler or an AIO is better on both temperature and noise.

Q. Can I add a second fan? A.

The dual-tower layout leaves room between and behind the towers, but availability of extra fans and clips varies — check the product page and included accessories.

Q. Air or AIO? A.

Air has no pump to fail and performs consistently from day one. An AIO of 240 mm or larger wins at the top end, but for a mid-range CPU over several years the 620S is the lower-risk choice.

Q. What warranty applies?
A. Two years from the manufacturer. Keep your order record, since proof of purchase is required.
