This article takes a deep dive into the Cooler Master TD500 Mesh V2, an ATX mid-tower case, using only the values on Cooler Master's official product page (the Japanese spec table).

Overview

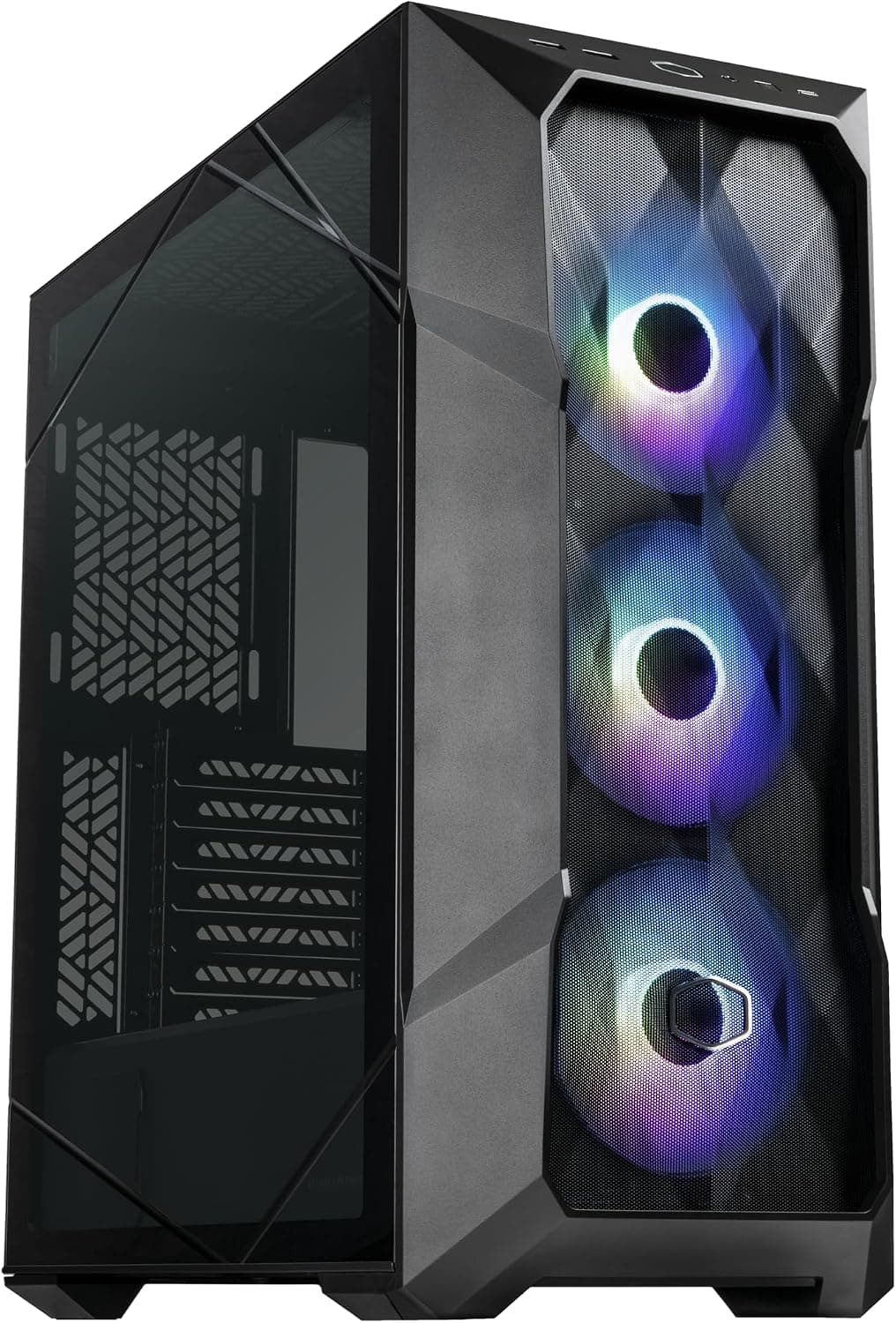

The Cooler Master TD500 Mesh V2 is a mid-tower case in the MasterBox Series (the official size entry is "Mid Tower"). The official model numbers are TD500V2-KGNN-S00 for black and TD500V2-WGNN-S00 for white.

The exterior is listed as Steel, Mesh, Plastic, and the left side panel is tempered glass.

The front ships with "3x 120mm CF120 ARGB" fans, and the "I/Oパネル - その他" (I/O panel - other) row of the spec table reads "1x ARGB Fan Hub". The short version: it is a case that comes with its front fans and hub out of the box.

The graphics card, CPU cooler and power supply clearances, and the motherboard and radiator conditions, are in the Compatibility Guide and Product Info.

Compatibility Guide

These are the fit checks from the official spec table. Each value that has conditions is given once, in its own item, with all of them.

  • Motherboards: "Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX*", where E-ATX carries the condition "*up to 12" x 10.7" motherboards, may impact cable management feature": only boards up to that size, and cable management may be affected.
  • Back-connector motherboards: Listed as "No". Boards with their connectors moved to the back are not supported.
  • Graphics card: The spec table's graphics card clearance ("クリアランス - グラフィックスカード") is 410mm.
  • CPU cooler: The spec table's CPU cooler clearance ("クリアランス - CPUクーラー") is 165mm.
  • Power supply: The spec table's power supply clearance ("クリアランス - 電源ユニット") is "200mm (Recommended up to 170mm)", and the supported PSU entry reads "Bottom Mount, ATX".
  • Cable management space: Listed as 19mm.
  • Expansion slots: 7.

Product Info

Here are the key official values, with what each one means for a buyer.

Case dimensions: The product dimensions (L x W x H) are "499 x 210 x 500mm (突起部を含む), 430 x 210 x 477mm (突起部を除く)", meaning with and without protrusions. When measuring your desk space, use the figures that include protrusions.

Drive bays: Two 3.5" bays and three 2.5" bays.

I/O panel: USB is "2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C", audio is "1x オーディオジャック" (one audio jack), and the "I/Oパネル - その他" (I/O panel - other) row reads "1x ARGB Fan Hub".

The page's description says the USB 3.2 Gen 2 Type C port sits on the front I/O.

Included fans: The front ships with "3x 120mm CF120 ARGB"; top and rear are listed as "N/A".

Fan support: Top and front take "3x 120mm, 2x 140mm"; the rear takes "120 mm x 1".

Radiator support: The spec table's top radiator entry ("対応水冷ラジエーター - トップ") is "120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)", the front entry is "120 / 140 / 240 / 280 / 360mm" and the rear entry is "120 mm".

Other details: Dust filters cover the front, top and bottom. The manufacturer warranty is listed as two years (２年).

The case comes in black and white.

Best Use Cases

  • Builders who want the front fans from day one. Front fans are included. The included ARGB/FAN hub has FAN headers, and the page's description says its controller lets you control the ARGB lighting independently of the motherboard.
  • People who care about dust control. Dust filters cover the front, top and bottom, and the page's description says the fine-mesh front panel combines high ventilation with a dust-filter function.
  • Anyone planning an AIO radiator at the top or front. Both positions have radiator entries. The sizes and the top thickness condition are under "Radiator support" in Product Info.

Things to Consider

Here is what to check before buying, following the official values.

First, the length of your power supply. The power supply clearance comes with a recommended value.

When choosing a unit, compare its length with the value in the Compatibility Guide.

Second, the motherboard size. E-ATX has a size limit and a note about cable management, and back-connector boards are not supported.

The conditions are in the Compatibility Guide.

Third, the top radiator. The top entry gives a recommended maximum thickness.

If you plan an AIO at the top, check "Radiator support" in Product Info.

Finally, the graphics card and CPU cooler. The spec table gives a clearance for each.

Compare your parts with the values in the Compatibility Guide. See the maker's official spec table for full details.

FAQ

Q. How many 2.5-inch SSDs can it hold?
A. The official spec lists three 2.5" drive bays, plus two 3.5" bays.

Q. How many expansion slots are there?
A. The official spec table lists 7.

Q. Is there a front USB Type-C port? A.

The I/O panel USB entry lists "1x USB 3.2 Gen 2 type C", and the page's description says it sits on the front I/O.
