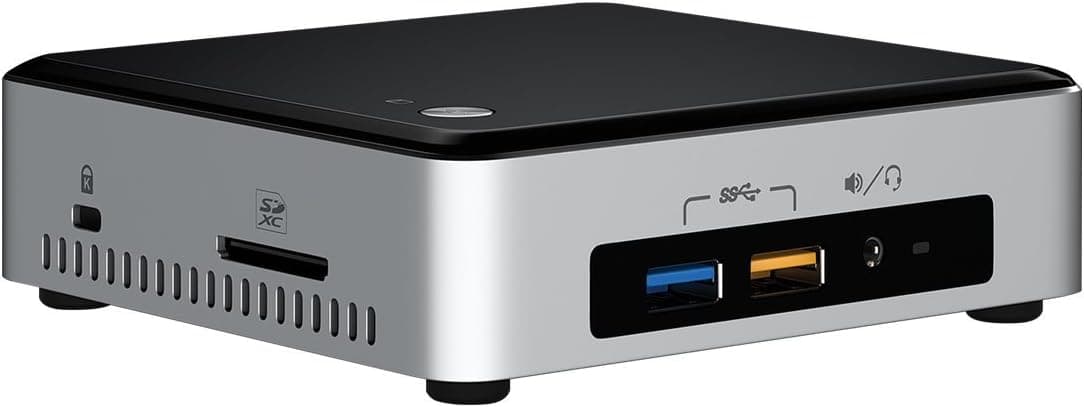

This article covers Intel NUC Core i3搭載 小型ベアボーン M.2 SSD対応 BOXNUC6I3SYK.

Overview

The Intel NUC BOXNUC6I3SYK is a compact barebone kit powered by the 6th-generation Core i3-6100U (Skylake) processor. Measuring just 115×111×48mm, it fits in the palm of your hand and is ideal for decluttering your desk. The CPU offers 2 cores and 4 threads at up to 2.3GHz, with a TDP of only 15W. Memory and storage are not included, but the kit supports DDR4 SODIMM and M.2 SSDs, giving you the freedom to customize. This NUC delivers enough performance for everyday office tasks, web browsing, and video playback. The integrated Intel HD Graphics 520 can drive 4K displays via Mini HDMI and Mini DisplayPort outputs. Built-in 802.11ac Wi-Fi and Bluetooth 4.1 keep cable clutter to a minimum. Positioned as an entry-level mini PC, the BOXNUC6I3SYK excels in scenarios where low power consumption, quiet operation, and a small footprint matter most. It's a solid choice for a media center, a lightweight home server, or a secondary workstation.

Compatibility Guide

Memory: DDR4 SODIMM (1.2V, 2133MHz) only. Supports up to 32GB in dual-channel mode. Desktop DIMMs are not compatible. Storage: One M.2 slot supporting 22×42 and 22×80 modules. Works with both SATA and PCIe SSDs. No 2.5-inch drive bay. Display Outputs: Mini HDMI 1.4b ×1, Mini DisplayPort 1.2 ×1. Supports 4K at 30Hz. Wireless: Intel Wireless-AC 8260 M.2 module with 802.11ac, Bluetooth 4.1, and Intel WiDi 6.0. Power: 19V, 65W AC adapter included with multi-country plugs. OS Support: Windows 10, Windows 8.1. Linux is also viable. * Mounting: VESA bracket (100×100mm) included for attaching to the back of a monitor.

Product Info

Released in late 2015, the Intel NUC BOXNUC6I3SYK is a Skylake-era barebone kit. Its original price was around ¥40,000, but current availability is limited to used or remaining stock on and other retailers. Intel provides a 3-year warranty. This product sits firmly in the entry-level tier. The Core i3-6100U's dual-core design keeps power draw low (15W TDP), making it perfect for light workloads. It is not intended for gaming or heavy content creation. However, its combination of silence, size, and efficiency remains relevant for niche applications.

Best Use Cases

Home Media Center: Connect to a TV for streaming Netflix, YouTube, or local media. 4K output works, but high-bitrate HDR content may struggle due to the GPU's limitations. Lightweight File Server: Pair the M.2 SSD with external USB 3.0 drives for a low-power 24/7 file server. The low idle power consumption keeps electricity bills minimal. Secondary / Remote Desktop Machine: Use as a secondary PC in a bedroom or study for browsing, email, and remote desktop access to a main rig. The VESA mount saves desk space. Quiet, Low-Power Build: If you need a near-silent PC for a quiet environment (library, bedroom), this NUC's fan is barely audible under light loads.

Things to Consider

You must purchase memory (DDR4 SODIMM) and storage (M.2 SSD) separately. Forgetting the form factor is a common mistake. The integrated HD Graphics 520 is not suitable for modern 3D gaming or GPU-accelerated tasks. Light indie games may run, but don't expect playable frame rates in AAA titles. M.2 SSD compatibility: Both SATA and PCIe (NVMe) modes are supported, but some NVMe drives may require a BIOS update for proper detection. The AC adapter is somewhat bulky relative to the tiny NUC itself, so plan your power outlet placement accordingly. * Production has ended; new units are scarce. If buying used, verify functionality and check for any warranty coverage. ## FAQ
Q: Can I install Windows 11 on this NUC? A: Officially, only Windows 10 and 8.1 are supported. Windows 11 requires TPM 2.0 and Secure Boot, which this older platform lacks. Unofficial workarounds exist but are not recommended for long-term use. Consider a newer NUC if you need Windows 11. Q: What type of RAM do I need? A: You need DDR4 SODIMM modules rated at 2133MHz and 1.2V. These are laptop-style memory sticks. Desktop DIMMs will not fit. Maximum supported capacity is 32GB. Q: Can this NUC play 4K video smoothly? A: It can output 4K at 30Hz via Mini HDMI or Mini DisplayPort, but 60Hz is not supported. Additionally, the GPU lacks hardware decoding for HEVC (H.265), so 4K video playback will rely on software decoding, which may cause stuttering on high-bitrate content.

Product Disclosure (Amazon)

  • Manufacturer: インテル
  • ASIN: B018JDP590
  • Note: This article covers a manufacturer-made product based on Amazon listing details.
