Overview

The Cooler Master HAF X is a legendary full-tower PC case that first launched in 2009, built around a single philosophy: high airflow. The name stands for "High Air Flow," and the case delivers with a massive 230mm front fan, three 200mm top fans, and a 140mm rear fan. It comes with a windowed side panel, support for XL-ATX motherboards, and enough room for GPUs up to 390mm and CPU coolers up to 190mm. While the HAF X is now more than a decade old, its cooling potential still rivals many modern cases. It includes a SATA hot-swap dock on the top, two USB 2.0 ports, and one USB 3.0 port on the front. The all-steel construction gives it a weight of about 14.3kg (31.6 lbs), making it a sturdy but heavy choice. Today, this case occupies a nostalgic yet practical niche: it offers flagship-level airflow at a budget price, but lacks modern conveniences like USB-C, tool-less drive trays, or a PSU shroud. It's best suited for builders who prioritize raw cooling performance and don't mind some old-school compromises.

Compatibility Guide

Motherboard Support: Officially supports XL-ATX (13.6" x 10.6"), E-ATX, ATX, Micro ATX, and Mini ITX. Note: some extra-wide E-ATX boards may overlap with cable routing holes. Power Supply: Standard ATX PSU mounting at the bottom. Supports units up to 220mm length. Graphics Card: Maximum GPU length is approximately 330mm with the HDD cage installed, and 390mm with it removed. Clearance for width is generous, but thick triple-slot cards may obstruct side panel airflow. CPU Cooler: Up to 190mm tall. The large side window bulge provides extra clearance for massive air coolers like the Noctua NH-D15. Drive Bays: 4x external 5.25", 5x internal 3.5" (divisible into two cages), and 4x 2.5" mounts on the back of the motherboard tray. Front I/O: 1x USB 3.0, 2x USB 2.0, headphone and microphone jacks. No USB-C.

Product Info

The HAF X was originally positioned as a premium enthusiast case, but today it competes at a mid-range price point. It lacks modern design features but compensates with exceptional airflow and build quality. Release Date: 2009 (original), with USB 3.0 revision around 2011. Price Range: Typically ¥15,000–¥25,000 for new old stock or marketplace listings (about $100–$180). Warranty: Cooler Master's standard 2-year warranty (varies by region). Cooling Capacity: Supports up to 230mm + 200mm×3 + 140mm fans. Excellent for high-TDP components.

Best Use Cases

Air-Cooling Enthusiasts: If you want a case that excels with tower coolers and plenty of big fans, the HAF X is a classic choice. It runs near-silent at low RPMs due to large fan diameters. Retro Build Projects: Perfect for recreating early-2010s dream PCs with parts like the Core i7-990X, GTX 580, or similar. The aesthetic matches that era. * Budget Big Case Seekers: You get full-tower capacity for the price of a mid-tower. If you can live without USB-C and tool-less features, it's a steal. Not for: Users who want a clean cable-routing experience, a glass side panel, or modern front panel connectivity. ## Alternatives

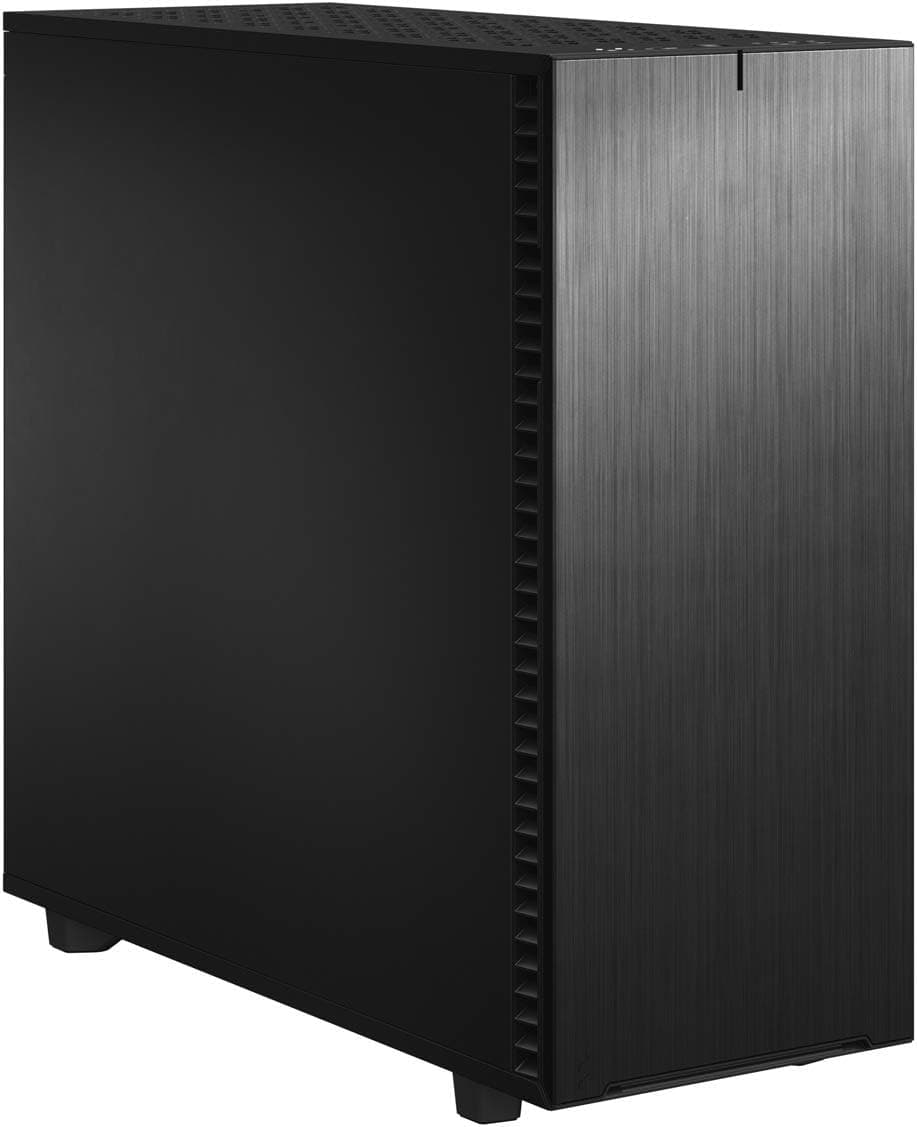

Cooler Master's own HAF 700 series (e.g., HAF 700 Berserker) is the direct spiritual successor, offering tool-less design, USB-C, and RGB control for about ¥40,000+ (~$350). It has even better airflow and modern amenities. Fractal Design Define 7 XL provides similar space but focuses on noise damping and flexible interior layout. It's quieter and more refined, but costs more and has slightly lower raw airflow. The HAF X's advantage is price-to-airflow ratio. Its disadvantage is dated design and lack of cable management.

Things to Consider

Limited Front I/O: Only one USB 3.0 port. No USB-C without a bracket mod. Cable Management: The space behind the motherboard tray is narrow. Modern modular PSUs with thick cables can be a challenge. Acrylic Side Window: Prone to scratches and yellowing over time. Replacing with glass requires custom fabrication. Dust Accumulation: The mesh filters are basic; dust builds up quickly in the high-airflow design. Frequent cleaning is required. * Weight and Size: At 14kg and 596mm depth, it's heavy and large. Make sure your desk or floor can accommodate it. ## FAQ Q: Can I install a modern RTX 4090 in the HAF X? A: Yes, most RTX 4090 models (around 350mm) fit with the HDD cage removed. Ensure adequate clearance for the power connector bend around the side panel. Q: Does the HAF X support 360mm radiators? A: Yes, a 360mm radiator can be mounted in the top (pay attention to thickness and motherboard VRM heatsink clearance). Front supports 240mm. It's air-cooling optimized, so water cooling requires some planning. Q: Is the HAF X still worth buying in 2026? A: For budget-conscious builders who prioritize airflow above all else, yes. But if you value modern features like tool-less assembly, USB-C, and easy cable management, inve
