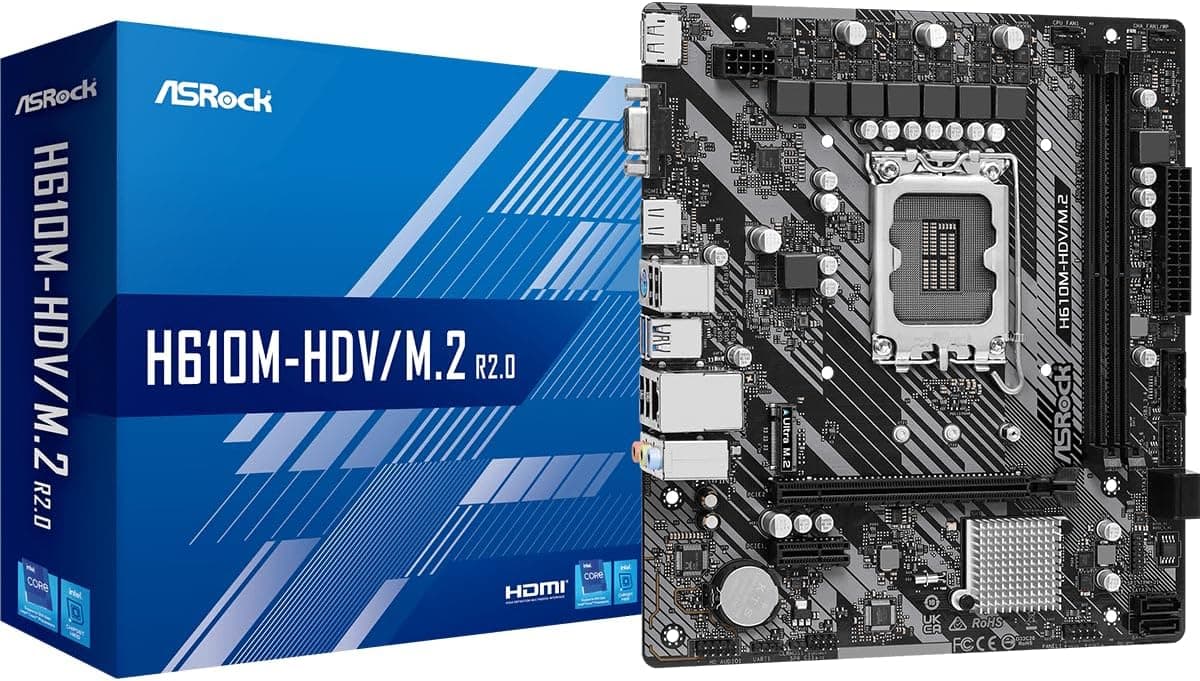

This article covers ASRock マザーボード H610M-HDV.

Overview

The ASRock H610M-HDV/M.2 R2.0 is a MicroATX motherboard built around the Intel H610 chipset, featuring an LGA1700 socket that supports 12th, 13th, and 14th Gen Intel Core processors. With two DDR4 memory slots, it targets budget-conscious builders who want a reliable foundation for everyday computing or light gaming.
This board employs a 6-phase (5+1) power design with premium chokes, ensuring stable operation even under moderate loads. It includes one PCIe 4.0 x16 slot for modern graphics cards, one M.2 slot (Gen3 x4), and four SATA3 ports for storage. The Intel I219V Gigabit LAN controller provides dependable wired networking, while the triple display outputs (DP, HDMI, D-Sub) allow flexible multi-monitor setups using integrated graphics.
Positioned firmly in the entry-level segment, the H610M-HDV/M.2 R2.0 offers essential features at an aggressive price point, making it an excellent choice for first-time builders or those assembling a secondary PC on a tight budget.

Compatibility Guide

The LGA1700 socket supports Intel Core processors from 12th Gen (Alder Lake) through 14th Gen (Raptor Lake Refresh). Note that a BIOS update may be required for 13th/14th Gen CPUs if the board ships with an older firmware version.
Memory support is limited to DDR4, with two slots supporting up to 64GB (32GB per module). XMP profiles are recognized, but manual overclocking is not available due to the H610 chipset limitations.
The MicroATX form factor (244mm x 188mm) fits most MicroATX and ATX cases. Power delivery requires a standard 24-pin ATX connector and an 8-pin EPS12V connector. A 500W power supply is sufficient for entry-level builds with a discrete GPU.
Storage connectivity includes one M.2 slot (PCIe Gen3 x4 / SATA) and four SATA3 ports. The M.2 slot lacks a heatsink, so consider adding an aftermarket heatsink if you plan to use a high-performance NVMe SSD.

Product Info

Released in late 2023, the ASRock H610M-HDV/M.2 R2.0 carries a street price around ¥10,000–¥12,000 in Japan, making it one of the most affordable LGA1700 motherboards available. ASRock provides a standard 3-year warranty for this model (valid for Japanese domestic authorized products).
As an entry-level offering, it deliberately omits features like PCIe 5.0, multiple M.2 slots, and advanced overclocking support. However, it delivers stable performance for its intended audience: users who need a no-frills platform for office work, light gaming, or home servers.
Key specifications: Intel H610 chipset, LGA1700 socket, 2x DDR4 (max 64GB), 1x PCIe 4.0 x16, 1x M.2 Gen3, 4x SATA3, Intel I219V LAN, Realtek ALC897/887 audio, 6-phase VRM.

Best Use Cases

Budget-conscious first-time builders: Pair this board with an Intel Core i3-12100 or i5-12400F and DDR4 memory for a cost-effective entry into PC building. It provides all the essentials without unnecessary extras.
Office productivity and light gaming: With integrated graphics (on non-F CPUs), the triple display outputs enable efficient multi-monitor setups for spreadsheets, coding, or media consumption. Casual gaming at 1080p low settings is feasible.
Home server or secondary PC: Low power draw and stable operation make it suitable for NAS, media server, or a dedicated streaming box. The combination of M.2 and SATA ports offers flexible storage options.
Who should avoid it: Enthusiasts wanting PCIe 5.0 support, multiple fast M.2 slots, or memory overclocking should look at B760 or Z790 boards. Also, if you plan to use a high-end GPU like an RTX 4080, the single PCIe 4.0 x16 slot is fine, but the limited PCIe lanes may bottleneck other expansion cards.

Things to Consider

The H610 chipset has fewer PCIe lanes than B760 or Z790, so the single PCIe 4.0 x16 slot is the only high-speed expansion slot. The M.2 slot is limited to Gen3, meaning Gen4 NVMe SSDs will run at reduced speeds.
No M.2 heatsink is included, so monitor SSD temperatures if using a high-performance drive. Additionally, the lack of BIOS Flashback means updating the BIOS requires a compatible CPU already installed.
Compared to slightly more expensive B760 boards, this model lacks PCIe Gen4 M.2 support, additional USB 3.2 Gen2 ports, and often better audio codecs. If you need those features, consider spending a bit more.

FAQ

Q: Can I use a 13th Gen Core i5-13400 with this motherboard?
A: Yes, it is compatible. However, ensure the BIOS is updated to a version that supports 13th Gen CPUs. Check with the retailer or update using a 12th Gen CPU first.
Q: Does this board support DDR5 memory?
A: No, it only supports DDR4. DDR5 modules are physically incompatible. For DDR5, look for an H610 DDR5 variant or a B760/Z790 board.
Q: Is this motherboard suitable for a gaming PC?
A: Yes, for entry-level to mid-range gaming. A combination like Core i5-12400F + RTX 3060 will handle 1080p high settings well. However, the single PCIe 4.0 x16 slot and Gen3 M.2 limit high-end configurations
