This article covers Delinx アップグレード 60W PC ファン電源.

Overview

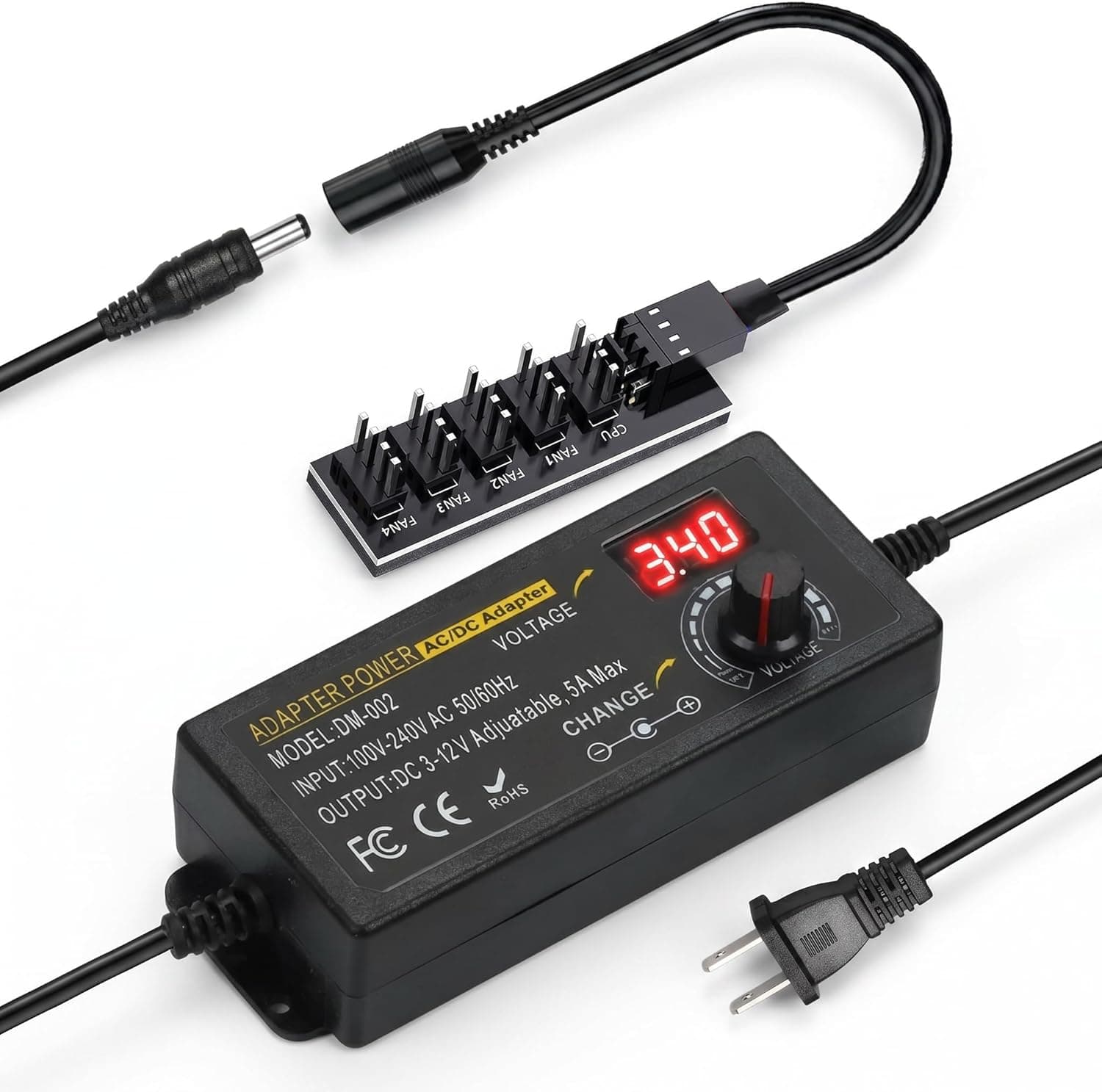

Delinx's Upgraded 60W PC Fan Power Supply is a niche but highly practical accessory for anyone who needs to drive multiple case fans without loading the motherboard headers. Unlike a standard ATX power supply, this unit is an external AC-to-DC adapter with an integrated fan speed controller, delivering 3 to 12V variable output at up to 5 amps (60W total). It supports both 3-pin and 4-pin PWM fans, and includes a 1-to-5-way splitter cable, so you can manage up to five fans from a single controller knob. The device accepts 100-240VAC input, making it suitable for worldwide use with just a plug adapter change. The included multi-speed controller allows fine-grained adjustment of fan speed, which translates directly to noise and airflow tuning. While it's not a product for every builder, it fills a specific gap for those who need extra fan channels or want to isolate fan power from the main PC supply.

Compatibility Guide

Fan Connectors: Standard 3-pin (voltage-controlled) and 4-pin PWM fans are both supported. With 4-pin fans, the controller varies voltage across the VCC/B+ line, so PWM signal from the motherboard is not required. Works as a simple voltage regulation solution. Fan Voltage: Designed for 12V-rated DC fans. Output range is 3–12VDC. Do not use with 5V-only fans as the minimum voltage may still exceed their rating. Capacity Limits: The splitter supports up to five fans, but total current draw must not exceed 5A (60W). For example, five fans each drawing 1A at 12V would hit the limit. Check individual fan current ratings before connecting. Non-PC Use: Compatible with cooling components in Xbox DVR, PlayStation, and other electronics, though intended primarily for PC cooling. Use with non-PC devices is at your own risk.

Product Info

Brand: Delinx Max Output: 60W (12V × 5A) Input: AC 100–240V, 50/60Hz Output Range: DC 3–12V (adjustable) Enclosure Material: Plastic Weight: Approx. 200g Supported Fan Pins: 3-pin & 4-pin PWM Max Fan Count: 5 (1-to-5 splitter included) In the market, this product sits in the enthusiast/accesory category — not a standard PC power supply but a dedicated fan controller with external power. It's ideal for anyone who needs extra fan capacity or wants to power external cooling arrays.

Best Use Cases

Multi-fan builds: If your motherboard has only three or four fan headers but you want to run seven or eight case fans, this Delinx unit lets you offload five of them to an external supply, preventing header overload and potential instability. External radiator or remote fan clusters: Water-cooling enthusiasts with external radiators (like Mo-ra3 setups) can use this AC-powered controller to run fans placed far from the PC case without routing long PWM cables back to the motherboard. DIY electronics / server cooling: The adjustable 3-12V output makes this useful for dimming LEDs, controlling small pumps, or running fans in a server rack enclosure. The built-in speed knob eliminates the need for separate PWM generators. ## Alternatives
Direct competitors include low-cost PWM fan hubs (e.g., Phanteks or Deepcool 1-to-10 hubs) that run on SATA power from inside the PC. Those are simpler if you only need fan splitting without external voltage control. However, they lack the remote adjustability and voltage range that Delinx provides. Other AC-DC fan adapters, such as those from Kingnovy or DROK, typically offer 40W output. The Delinx unit's 60W/5A capacity gives you headroom for larger fans. On the downside, its plastic housing feels less premium than metal-case alternatives, and the exact dBA rating of the controller is unlisted — expect to test it in your own environment.

Things to Consider

First, this is NOT an ATX power supply replacement. Do not plug it into a motherboard 24-pin connector. It's strictly for fans and low-power 12V devices. Second, the voltage adjustment knob is continuous; there are no click-stops for preset speeds. Getting a consistent repeatable fan speed between sessions may require some trial and error. Third, for a standard PC with sufficient motherboard fan headers, a simple $10–15 PWM hub that draws power from a SATA connector is more convenient and avoids the external brick. Reserve this Delinx unit for scenarios where you genuinely need external power or voltage control. Finally, check seller warranty policy before purchase — the unit is sold by third-party seller "Ｎ＆Ｙ" on Japan. No official Delinx warranty documentation was found. Use a surge protector to avoid damage from power spikes.

Product Disclosure (Amazon)

  • Manufacturer: Delinx
  • Seller: Ｎ＆Ｙ
  • Fulfilled by: Ｎ＆Ｙ
  • ASIN: B0FBRKBD3C
  • Note: This article covers a manufacturer-made product based on Amazon listing details.
