Overview

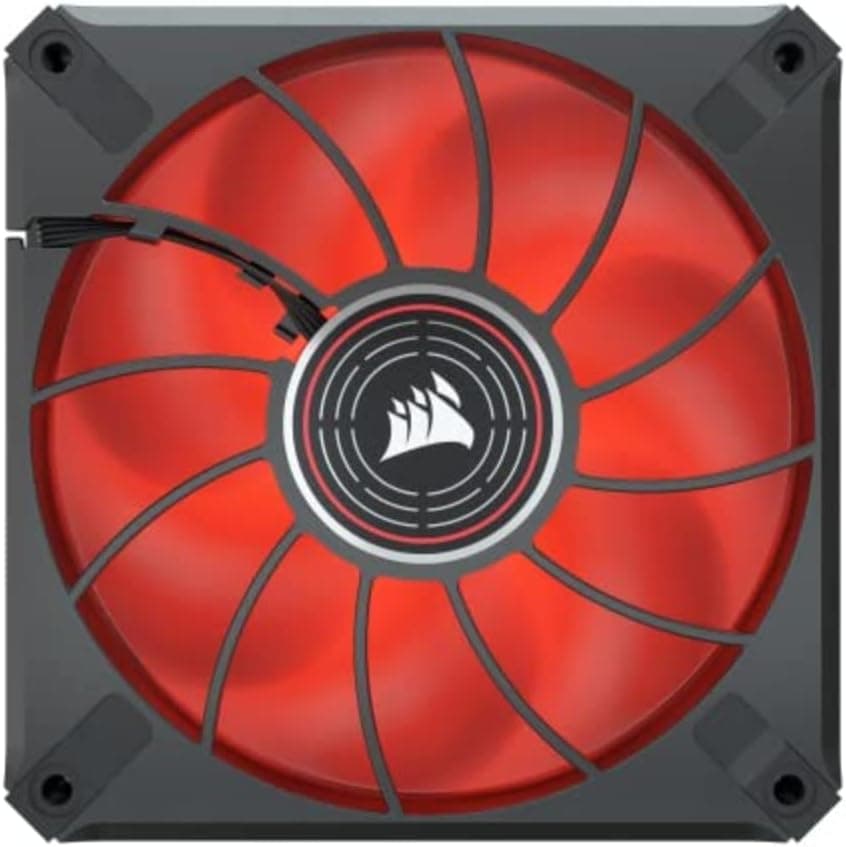

The CORSAIR ML120 LED ELITE is a 120mm case fan that brings magnetic levitation bearing technology to an affordable LED fan. With a maximum rotation speed of 2000 RPM and a noise level of just 30 dBA, it strikes a solid balance between cooling performance and quiet operation. The fan features red LEDs and benefits from AirGuide technology, which uses anti-vortex vanes to channel airflow directly onto critical components like CPU coolers and radiators. This single-pack variant (CO-9050120-WW) is perfect for users looking to add one fan to their build without unnecessary extras.
Compatibility Guide
Fan Size: 120mm x 120mm x 25mm – standard 120mm mounting hole spacing (105mm x 105mm). Connector: 4-pin PWM – works with standard 4-pin PWM motherboard headers; also compatible with 3-pin headers (but runs at constant max speed). Suitable Devices: PC cases, CPU tower coolers, and radiators up to 360mm. Best used as intake, exhaust, or radiator fan. Voltage: 12V DC. * LED Control: Fixed red LED – no software control or RGB sync. If you need addressable RGB, look at CORSAIR SP or LL series.
Product Info
Launched in November 2021, the ML120 LED ELITE is a mid-range case fan from CORSAIR. This single-pack model (CO-9050120-WW) retails for approximately ¥1,220 on (as of May 2026), making it one of the most affordable magnetic-levitation-bearing fans on the market. The fan carries a 5-year warranty and is widely available from major PC retailers in Japan. Market positioning leans toward entry-level to mid-range: it doesn’t reach the absolute silence of Noctua’s premium fans, but offers an excellent price-to-performance ratio with LED lighting and a durable bearing design.
Best Use Cases
Budget Gaming PC Builders: At around ¥1,200 each, you can equip a case with multiple ML120 fans without blowing your budget. The red LEDs add a clean, consistent lighting scheme. Users Seeking Quiet Operation with Good Airflow: The magnetic levitation bearing produces less friction noise over time compared to sleeve or rifle bearings. At 30 dBA, it’s quiet enough for overnight use but still pushes decent air. First-Time PC Builders: Standard 120mm form factor, simple 4-pin PWM connection, and intuitive mounting make this a stress-free choice for newcomers.
Things to Consider
Fixed Red LED: The colour cannot be changed – if you prefer RGB or a different hue, look for CORSAIR’s SP RGB or LL RGB series instead. Not the Quietest Option: Premium fans like Noctua NF-A12x25 are quieter at similar RPM, but they cost more than double. Choose based on your priority between absolute silence and budget. No PWM Extension Cables Included: The single pack includes only the fan and mounting screws. For cable management, you may need separate 4-pin extensions. ## Specifications | Item | Specification | |------|---------------| | Brand | CORSAIR | | Model | ML120 LED ELITE (CO-9050120-WW) | | Fan Size | 120 mm × 120 mm × 25 mm | | Bearing | Magnetic Levitation | | LED Colour | Red (fixed) | | Max RPM | 2000 RPM | | Noise Level | 30 dBA | | Connector | 4-pin PWM | | Voltage | 12 V DC | | Material | Metal (frame) | | Warranty | 5 years |
