This article covers 手首ガジェット用の部分反射モノクロパネル機能を備えた 1.08 インチの小型連続ビューパネル モノクロ常時表示.
Overview

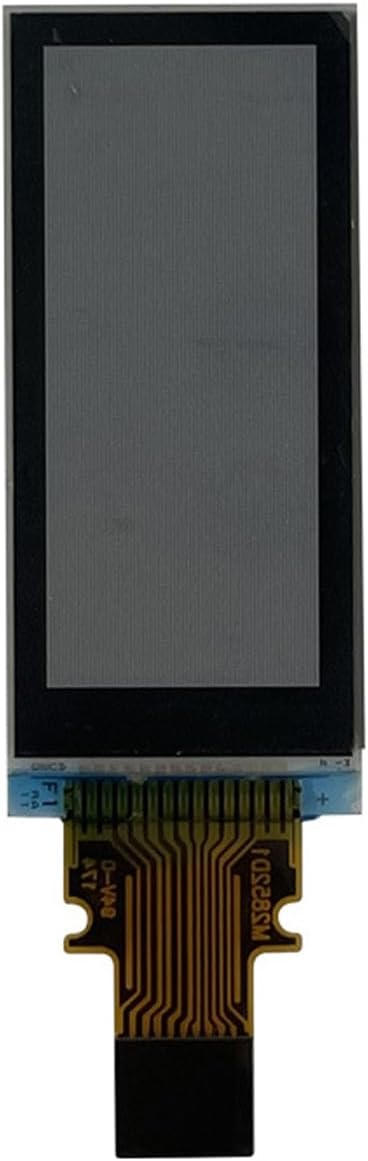

The LS011B7DH03 is a 1.08-inch partial reflective monochrome LCD panel designed for wrist-worn gadgets and smartwatches. With a resolution of 160x68 pixels and an SPI interface, it offers always-on display capability at low power consumption. Thanks to its transflective technology, readability remains excellent even under direct sunlight, making it suitable for outdoor use. This panel is ideal for DIY wearable devices and fitness trackers.
Key Features
1.08-inch display with 160x68 resolution: Provides enough space to show time, heart rate, and notifications while maintaining a compact form factor. Transflective technology: Combines backlight and ambient light reflection for clear visibility indoors and outdoors without excessive battery drain. Always-on monochrome display: Capable of continuously showing information without quickly depleting power, ideal for always-visible applications. SPI interface: Easily connects to microcontrollers and single-board computers, enabling custom display development. * Wide operating temperature range (-20°C to 70°C): Ensures reliable performance in harsh environments, suitable for outdoor and industrial use.
Connectivity & Compatibility
This panel uses a 10-pin SPI interface compatible with 3.3V or 5V logic microcontrollers such as Arduino, ESP32, and Raspberry Pi Pico. With appropriate libraries, users can easily display text and graphics. It does not support touch input, but its low power consumption makes it perfect for battery-powered wearables. Compatible devices include smartwatches, fitness trackers, small measurement instruments, and head-mounted displays.
Product Info
The LS011B7DH03 is available on , sold by QiQuan1. The price typically ranges around 1,000 JPY (subject to change) for a single unit. The package includes only the display module itself; no cables or mounting hardware are included. Warranty terms follow the seller's policy. This product is widely used for electronics hobby projects and prototyping.
Best Use Cases
DIY smartwatch or fitness tracker projects: Its small size and low power consumption make it an excellent choice for battery-powered wearables. Outdoor display devices: Transflective technology ensures readability in bright sunlight, perfect for cycling computers or handheld gauges. * Electronics enthusiasts and IoT developers: Easy SPI connectivity allows rapid prototyping with Arduino or ESP32, ideal for custom display applications.
